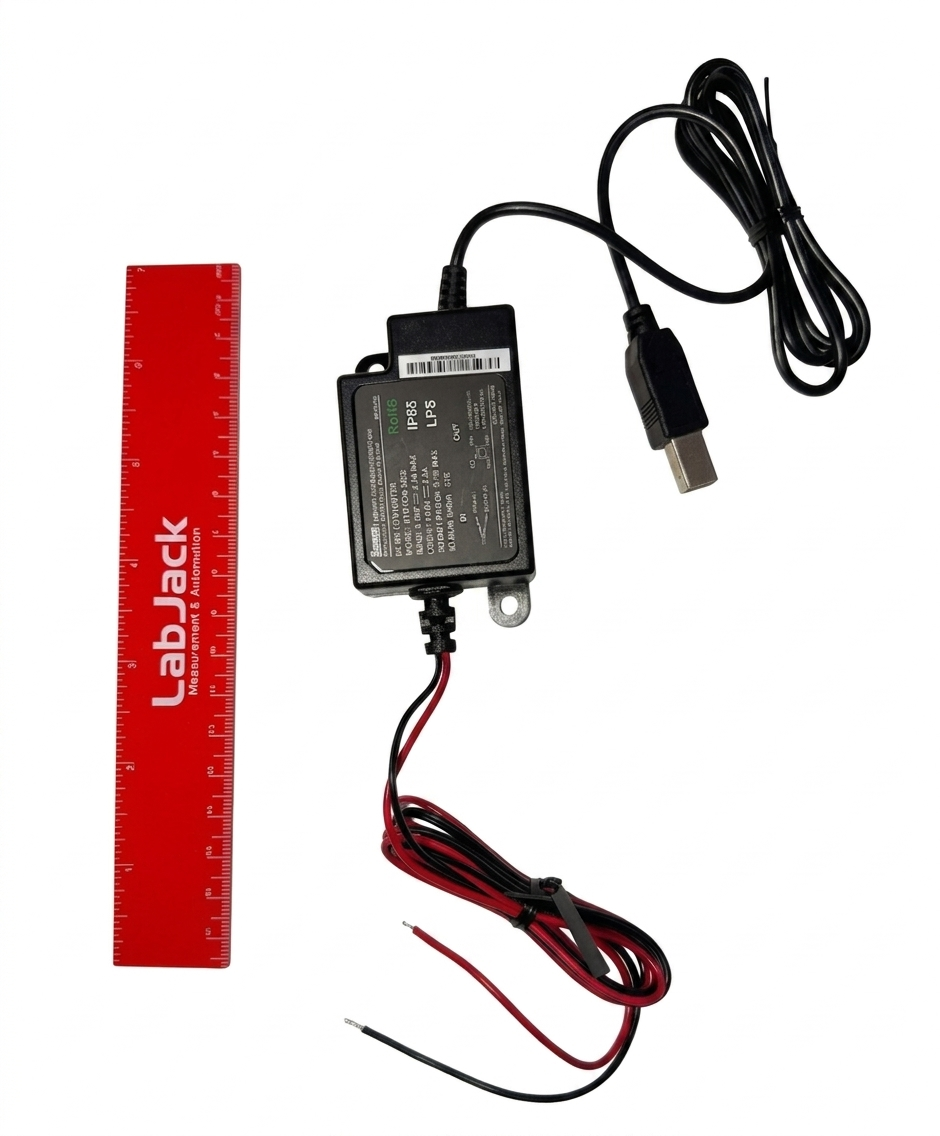

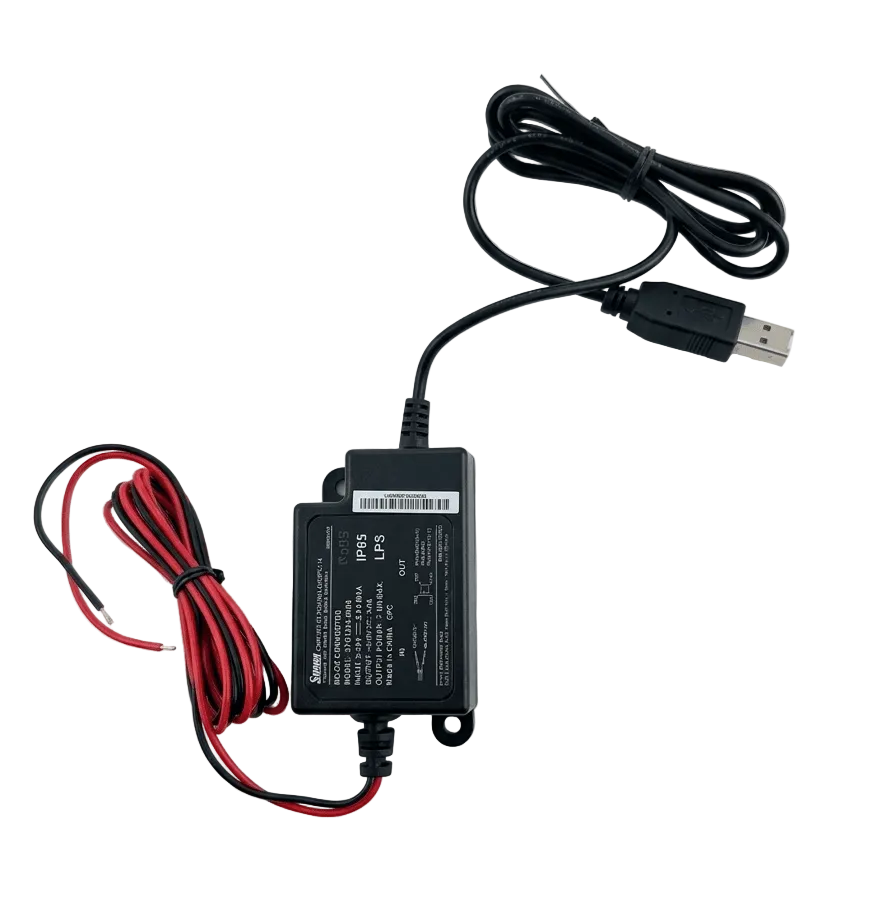

DC-DC Power Adapter
This adapter provides a reliable way to power LabJack DAQ hardware in environments where a computer USB port is unavailable or inconvenient. Designed for use with 12V or 24V power rails, this DC/DC converter steps down any input from 8V to 35V to a regulated 5V DC output.
The output is a USB Type-B male connector which connects directly to LabJack DAQ devices, making it the ideal companion for T-Series devices connected via Ethernet or WiFi. This allows for true standalone operation without the need for a host PC nearby.
Key Features
-
Wide Input Range: Operates on any input from 8V to 35V DC, making it natively compatible with both automotive (12V) and industrial (24V) battery and rail systems.
-
Directly Connects to LabJack: Features a USB Type-B male port, allowing for a direct connection to your device without the need for additional cables or adapters.
-
100 cm Leads: Both the input (power source) and output (USB) leads are 100 cm each, providing ample length for routing inside cabinets or vehicle cabins.
-
Industrial Protection: Built-in over-voltage, over-current, and reverse-polarity protection to safeguard your DAQ hardware from electrical transients.
-
Environmental Durability: Housed in a compact, IP-65 water-resistant case for reliable performance in harsh conditions.
Specifications
| Feature | Specification |
| Input Voltage | 8 – 35V DC |
| Output Voltage | 5V DC (Regulated) |
| Output Current | 2.0A (Continuous) |
| Connector (Output) | USB Type-B Male |
| Efficiency | > 70% minimum |
| Operating Temp | -40°C to +60°C |
| Case Dimensions | 63 x 43 x 24 mm |
| Ingress Protection | IP-65 |
