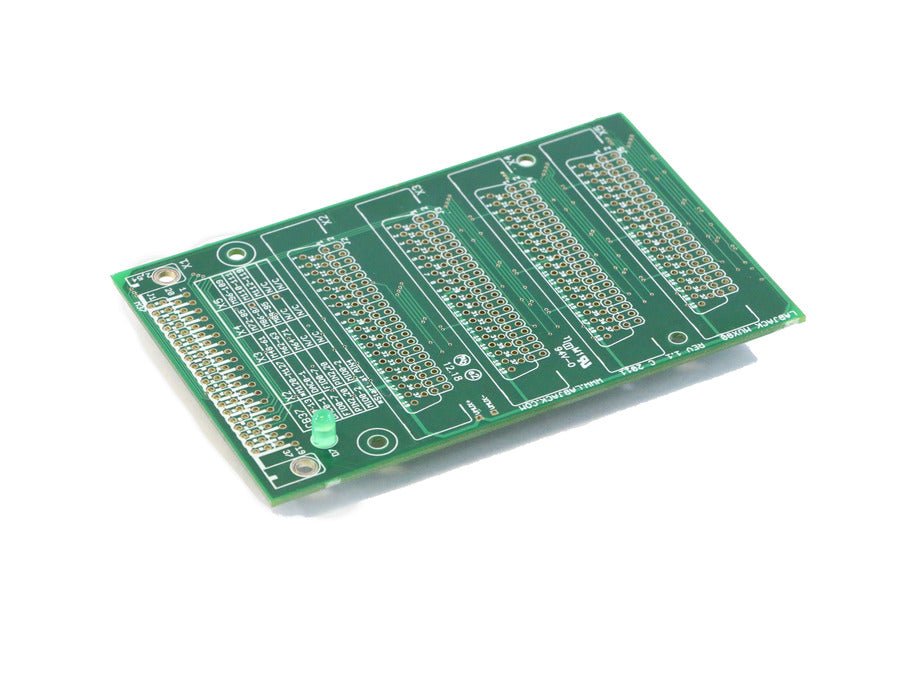

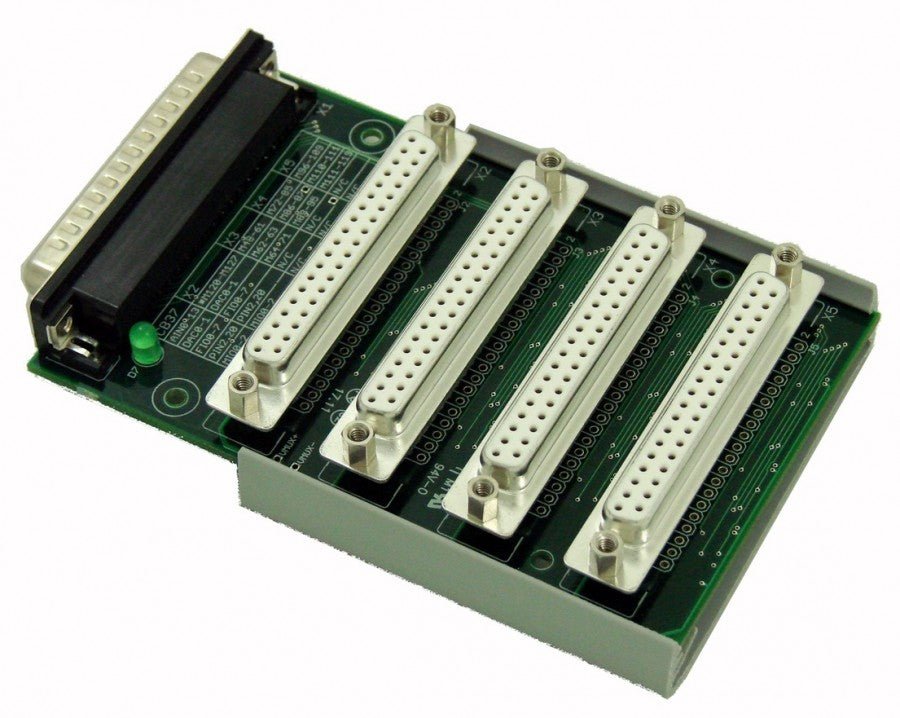

Mux80 AIN Expansion Board

LabJack Mux80

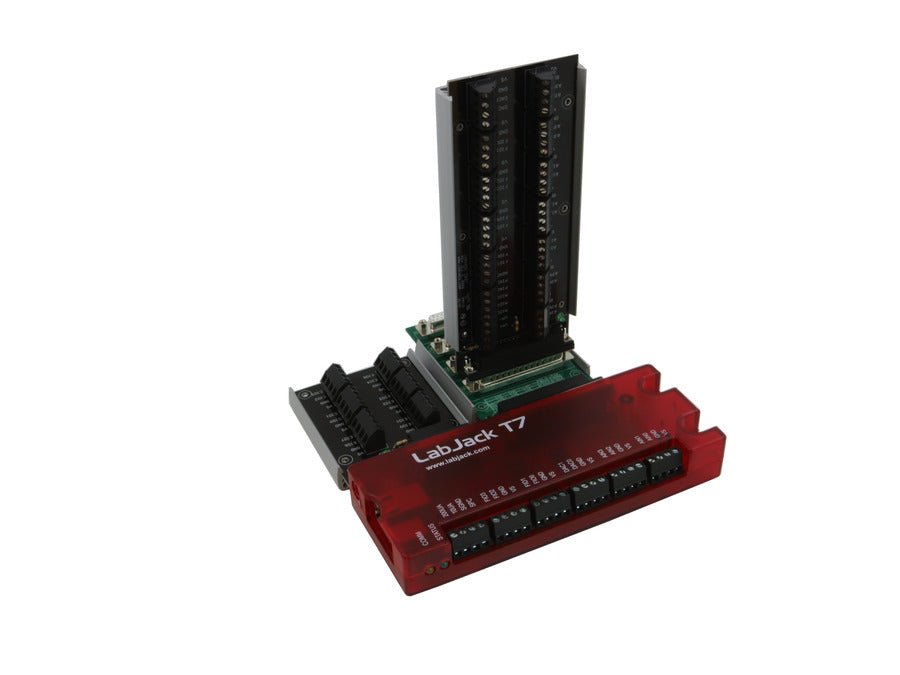

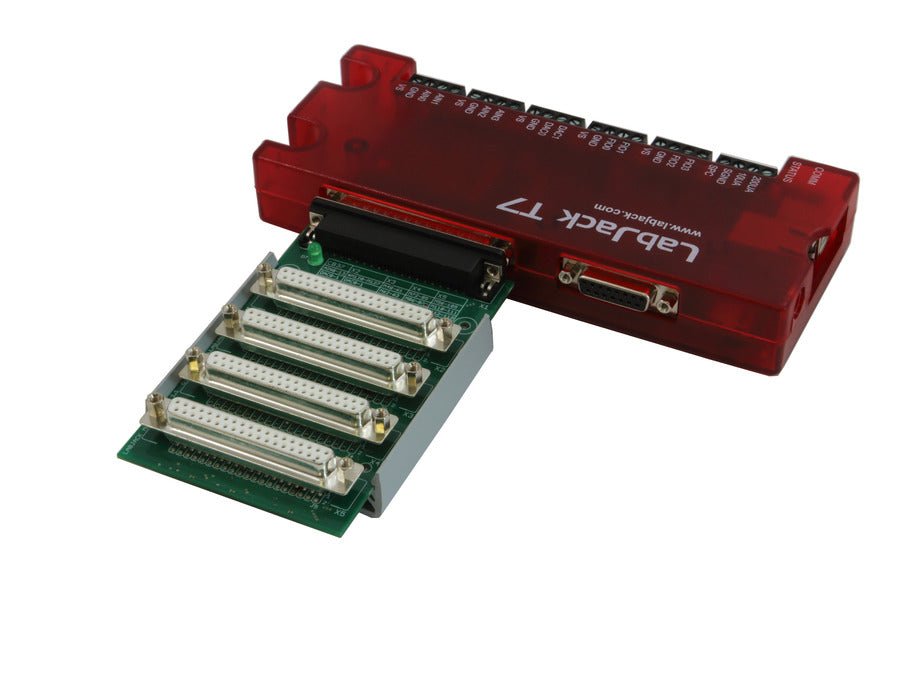

Mux80 with a T7

LabJack Mux80 USB, Ethernet, WiFi DAQ 80 Analog Input Expansion Board with T7 and CB15

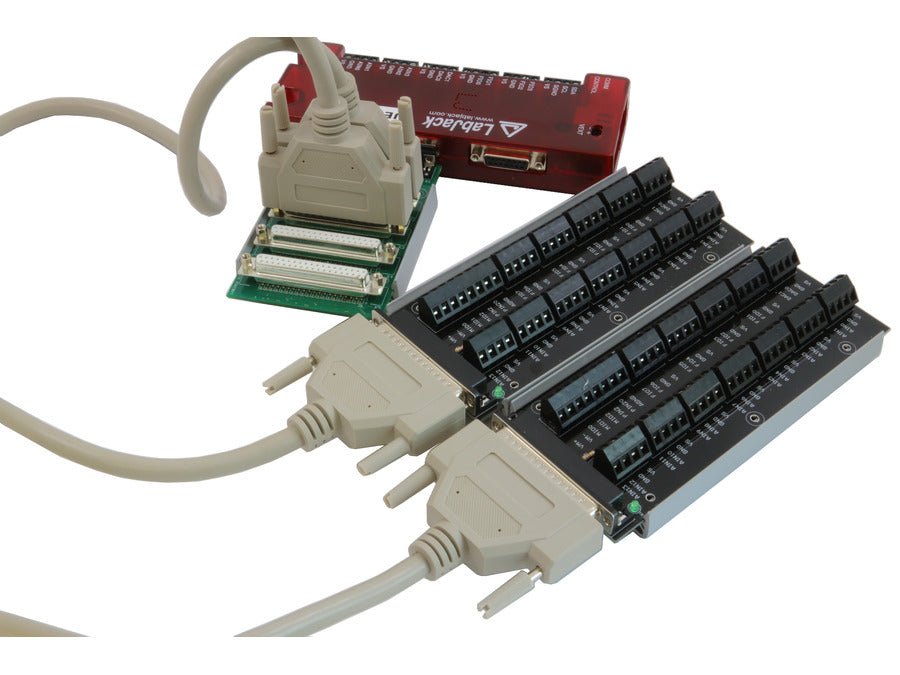

Mux80 with a T7, CB37, and CB15

LabJack Mux80 USB, Ethernet, WiFi DAQ 80 Analog Input Expansion Board with UE9-Pro and two CB37s

Mux80 with two extended CB37s

LabJack Mux80 USB, Ethernet, WiFi DAQ 80 Analog Input Expansion Board Package Contents

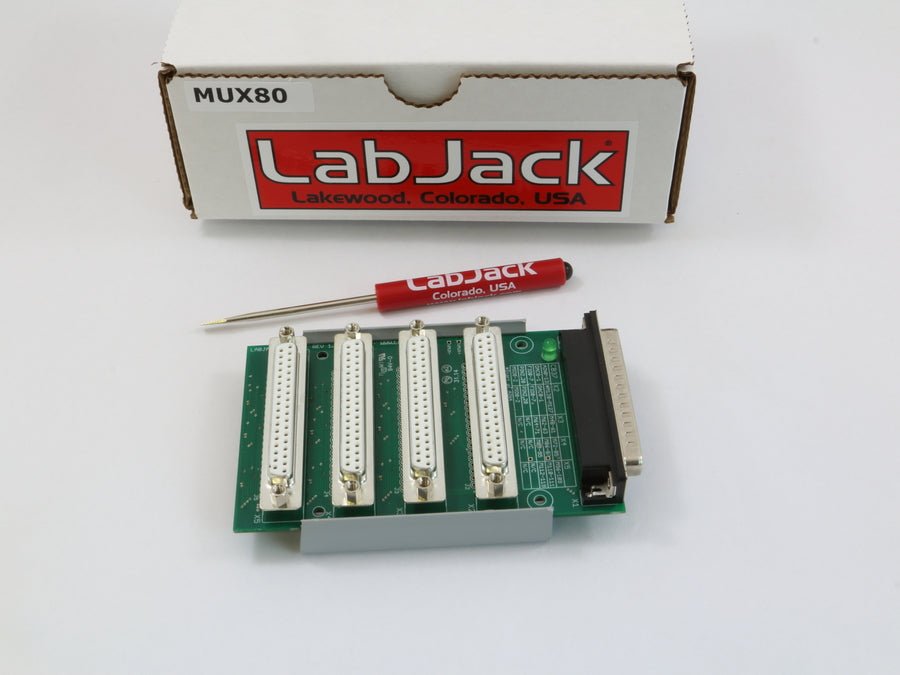

Mux80 Package Contents

Analog input expansion board that adds 80 analog input channels. It can be connected to a U6, UE9, or T7 directly through the DB37 connector. Ten of the LabJack's analog inputs are multiplexed (1:8 each) by the Mux80, and 4 are left untouched on AIN0-3 screw terminals, bringing the total number of available analog inputs to 84.

80 channels
OEM capability
High density connectors
Snaptrack/DIN rail compatible

As a quick reference, the Mux80 enables the use of registers 48-127

CB37 Labels	X2	X3	X4	X5

AIN0-13	AIN0-3, AIN120-127	AIN48-61	AIN72-85	AIN96-109
DAC0-1	DAC0-1	AIN62-63	AIN86-87	AIN110-111
FIO0-7	FIO0-7	AIN64-71	AIN88-95	AIN112-119

For more information, see the Mux80 Datasheet.

Information

Stock Status:

In Stock

Compatible Products:

T7 Series

U6 Series

UE9 Series

$159.00

Quantity Discounts:

1 - 9 = $159.00 per unit
10 - 29 = $146.28 per unit
30+ = $136.74 per unit
